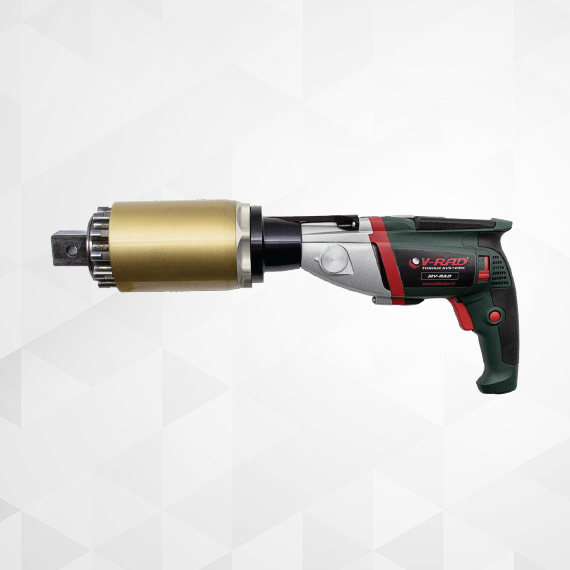

Electric Torque Wrench - Digital MV RAD

Inquire Now
Electric Torque Wrench

Digital MV-RAD: Precision Electric Torque Wrench for Advanced Bolting in Saudi Arabia


The Digital MV-RAD from ABS Group Arabia is engineered for high-performance bolting in the most demanding sectors across Saudi Arabia and offers unrivalled control, flexibility and repeatable accuracy. Whether you are tightening the flanges on an Aramco pipeline, building turbine frames, or performing QA inspections during NEOM’s mega construction developments, the Digital MV-RAD delivers consistent torque with added digital programmability.

The Digital MV-RAD is the ideal tool for a highly configurable environment with custom setups, small size, and the potential for data-based verification, making it a forward-looking solution for modern industries in the Kingdom.



SPECIFICATIONS

Maximum Torque (Nm) / (ft-lbs)                11000 / 8,113
Minimum Torque (Nm) / (ft-lbs)                 65 / 48
Maximum Weight (kg) / (lbs)                      3.9 / 8.6
Minimum Weight (kg) / (lbs)                       13.6 / 30

PRODUCT CATALOGUE

ABS Corded Electric Torque Wrench - MV-RAD Select



Prod.no.

Model

Square drive

Torque range

RPM

Weight

Dim. L

Dim. D

Dim. W

Dim. H

🠋 200278

MV-RAD 6

¾"

65 - 650 Nm

38,0

3,9 Kg

390 mm

64 mm

74 mm

203 mm

🠋 200279

MV-RAD 14

¾"

140 - 1.400 Nm

8,8

3,8 Kg

305 mm

69 mm

74 mm

203 mm

🠋 200289

MV-RAD 14-90°

¾"

140 - 1.400 Nm

13,0

5,3 Kg

176 mm

69 mm

74 mm

390 mm

🠋 200277

MV-RAD 20

1"

200 - 2.000 Nm

5,7

4,0 Kg

311 mm

69 mm

74 mm

203 mm

🠋 200282

MV-RAD 34-90°

1"

340 - 3.400 Nm

5,5

7,5 Kg

224 mm

77 mm

77 mm

400 mm

🠋 200469

MV-RAD 40

1"

600 - 4.000 Nm

2,7

6,2 Kg

343 mm

79 mm

79 mm

203 mm

🠋 200284

MV-RAD 45

1½"

450 - 4.500 Nm

2,0

8,8 Kg

495 mm

86 mm

86 mm

221 mm

🠋 200345

MV-RAD 45-90°

1½"

450 - 4.500 Nm

3,0

9,5 Kg

252 mm

86 mm

86 mm

404 mm

🠋 200287

MV-RAD 70

1½″

700 - 7.000 Nm

1,5

9,5 Kg

429 mm

95 mm

95 mm

226 mm

🠋 200325

MV-RAD 70-90°

1½″

1.400 - 7.000 Nm

1,0

10,4 Kg

245 mm

95 mm

95 mm

409 mm

🠋 200286

MV-RAD 80

1½″

1.200 - 8.000 Nm

1,5

11,3 Kg

492 mm

101 mm

101 mm

229 mm

🠋 200395

MV-RAD 110

1½″

2.100 - 11.000

1,0

13,1 Kg

510 mm

108 mm

108 mm

232 mm

🠋 200466

MV-RAD 110-90°

1½″

2.100 - 11.000

1,2

13,6 Kg

269 mm

108 mm

108 mm

415 mm

Key Advantages

  • 🔢 Torque Settings in 1 Nm Increment
    Customize your torque values using the membrane keypad and have no pre-defined step limits, making it ideal for critical or sensitive bolting applications.

  • 🧰 Angle Function & Programmable
    Perform torque-plus-angle sequences seamlessly. Modify parameters beyond torque in order to satisfy specific standards that relate to your project.

  • 🔍 Optional Bolt Check Function
    Inspect previously tightened bolts without pulling new torque. If desired, the tool can automatically "pull" you to specification and document how much you moved the bolt, especially effective when used with the RAD Smart Socket.

  • 📟 Digital OLED Display & Membrane Keypad
    Provides intuitive navigation and instant feedback while bolting. User friendly for field and plant conditions.

  • 🧑‍🔧 Rotating Handle with Ergonomics
    The lightweight frame and 360° rotating handle reduces operator fatigue in confined spaces and hard-to-access areas.

  • 🛑 Automatic Shut-Off
    The tool stops automatically at the pre-set torque and releases the reaction arm which reduces the risk of over-torquing.

  • 🔇 Quiet (80 dB)
    Operates safely and comfortably within noise-sensitive environments such as clean rooms, workshops, or confined areas in a plant.

Why the MV-RAD Is Trusted in Gulf Industries


The MV-RAD’s digital control, adaptability, and repeatability (±3%) has made it a favorite choice among industries in the Gulf, where both traceability of performance and operational efficiency are paramount. Available from global engineering specialists RAD Torque Systems and working through local support from ABS Arabia with calibration and training, the MV-RAD is always the contractor’s tool of choice when dealing with:

✅ Oil & Gas piping systems

✅ Modular skid assembly

✅ Bolt tightening (turbine and wind energy)

✅ Mining and steel structure/ infrastructure

✅ Operating and maintenance at power and desalination plants

The MV-RAD has become a go-to tool for engineering consultants and internal quality assurance teams who require data-logged torque, with the velocity of verification in audit and compliance.

Ideal Applications in Saudi Arabia

  • 🛢 Oil & Gas: Valve flanges, skid modules, process piping

  • ⚡ Power Generation & Wind: Turbine base mounting, generator coupling

  • 🏗 Construction: Steel joints, anchor bolts, modular connections

  • 🏭 Manufacturing Plants: Precision machinery assembly

  • ⛏ Mining & Heavy Industry: Crushers, conveyor bolting, high-load gear assembly



After-Sales Service & Rental Options

🔧 Tool Rentals - Available Across KSA

 Rent digital MV-RAD units for shutdowns, project-based, or seasonal usage. Rental units can be located in Riyadh, Jubail, Dammam, NEOM, Jeddah, or anywhere throughout the country.

🛠️ Calibration & Technical Support

 All rental units are received completely calibrated and provided with ISO 17025-certified service centers, calibration certificates, reaction arms, and manuals throughout Saudi Arabia.

📚 Training & Configuration

 ABS Group Arabia provides basic operational training, parameter configuration assistance, and the ability to bolt check your integration based on your use case.

📩 Email: Mrashid@absgroup-arabia.com
📞 Call/WhatsApp: (+966) 509775727





Enquire Now



People Also Ask

Electric torque wrenches are highly accurate, with most models offering a precision level of ±2-5% of the set torque value. Advanced digital models often include feedback systems for real-time accuracy and can log data for quality control. Regular calibration is essential to maintain this level of precision over time.

A torque gun is a power tool designed to apply specific torque to fasteners. Here's how it operates- Power Source- The gun is powered electrically, pneumatically, or hydraulically to drive a motor. Torque Control- Users set the desired torque value on the tool or an external controller. Operation- The motor drives a gear mechanism to apply torque to the fastener. Torque Limitation- When the preset torque is reached, the tool stops automatically or disengages the drive to prevent over-tightening. Torque guns are widely used in industries requiring high levels of accuracy and repeatability, such as automotive, construction, and energy.

An electric torque wrench works as follows- Motor Activation- A motor generates the force needed to tighten or loosen fasteners. Torque Setting- The user sets the desired torque value on the tool’s digital or manual interface. Torque Application- The wrench applies torque through its drive mechanism until the preset value is reached. Feedback- The tool provides visual or audible signals (e.g., lights or beeps) to indicate that the desired torque has been applied. Electric torque wrenches often include features like data logging, torque-angle measurement, and Bluetooth connectivity, making them suitable for precision-driven applications.

Set the Torque Correctly- Always adjust the torque wrench to match the required specifications for the task. Use the Tool Properly- Apply torque in a smooth, steady motion, and never use the wrench for purposes other than tightening to the set torque. Calibrate Regularly- Ensure the wrench is calibrated at least once a year or after heavy use to maintain accuracy and reliability.
