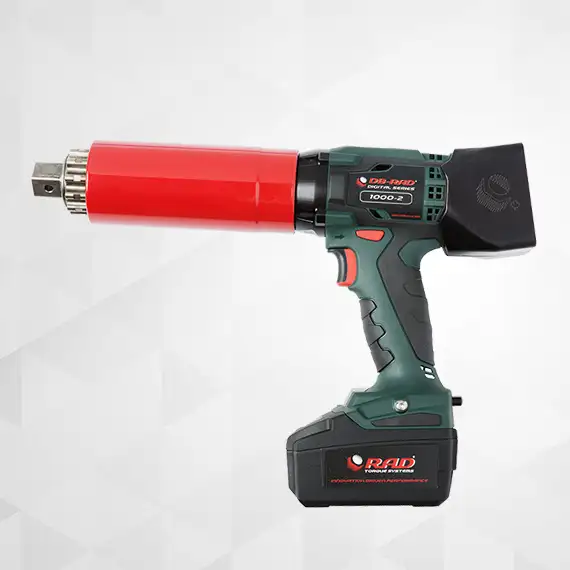

Cordless Electric Torque Wrench - Digital B-RAD

Inquire Now
Battery Torque Wrench

Digital B‑RAD: Cordless Precision Bolting for the Saudi Industrial Sector

The Digital B-RAD Wireless Electric Torque Wrench is the next generation of cordless torque wrenches, conceived for the new era of industries in Saudi Arabia! Digital torque control and accuracy combined with superior torque capabilities for use in the field. The Digital B-RAD is perfect for jobs that require mobility, safety, accuracy, and dependency without an external power supply. Ideal for remote oil fields, petrochemical plants, power infrastructure, and mining projects in the Kingdom.

The Digital B-RAD operates with +/- 5% accuracy and +/- 2% repeatability, and its battery-driven torque wrench will reduce the time and risks associated with bolting to a faster, safer, and smarter operation.


SPECIFICATIONS

Maximum Torque (Nm) / (ft-lbs)                4000 / 3000
Minimum Torque (Nm) / (ft-lbs)                 70 / 50
Maximum Weight (kg) / (lbs)                      7.1 / 19.5
Minimum Weight (kg) / (lbs)                       5.0 / 11

PRODUCT CATALOGUE

 ABS Cordless Electric Torque Wrench - Digital B-RAD



Metric

TOOL MODEL TORQUE RANGE RPM

DB-RAD 700-2

70-700 Nm

59

DB-RAD 1400-2

140-1400 Nm

19

DB-RAD 2000-2

200-2000 Nm

17

DB-RAD 4000-2

400-4000 Nm

9



Imperial

TOOL MODEL TORQUE RANGE RPM

DB-RAD 500-2

50-500 ft/lbs.

59

DB-RAD 1000-2

100-1000 ft/lbs.

19

DB-RAD 1500-2

150-1500 ft/lbs.

17

DB-RAD 3000-2

300-3000 ft/lbs.

13







Key Advantages :


Cordless freedom: Operate without a power source - perfect for remote field jobs and difficult or hard-to-access plants.

Integrated calibration: Remain compliant with no external calibration source to skew the calibration.

Integrated digital display: Set and monitor torque with ease using the built-in display and control panel.

Single increment torque: Allow fine-tuning of torque to specifications, critical for mission-critical bolts in plants, power, or otherwise.

Ergonomic and Lightweight: The compact design (5.0 - 7.1kg) provides ease of use for operators, especially on long shifts.

Preset torque programming: Be more productive using factory pre-configured settings, especially during a shutdown, turnaround, or other project.

High torque range: Ranging from 70 - 4000 Nm (50 - 3000 ft-lbs), allowing for various applications from maintenance to installation.


Why the Digital B‑RAD Is Trusted in Gulf Industries

The Digital B-RAD was an instant hit with the heavy industries of Saudi Arabia, who were impressed with its ease of plug-and-play operation, ISO-calibrated accuracy, and attention to operator needs. It is being successfully deployed by the maintenance teams at Aramco sites, SEC power stations, and SABIC petrochemicals. In the Gulf region, we are known for:

Moving battery-powered agility in the remote desert or offshore

Achieving consistent torque accuracy without the variable parameters of a pneumatic system

Increasing productivity in short maintenance windows or during planned shutdowns

Providing digital audit trails for QA/QC records and safety inspection documentation

In collaboration between ABS Group Arabia and RAD Torque Systems, the B-RAD tool ensures you achieve world-class performance with local support, servicing, and rental options.

Industries We Serve in Saudi Arabia

The Digital B‑RAD is tailored for Saudi Arabia’s most critical and high-impact sectors:

Oil & Gas
Petrochemical & Refining
Power Generation
Mining & Minerals
Construction & Steel Fabrication
Marine & Offshore
Cement & Infrastructure

Ideal Applications :

Routine and emergency bolting in remote locations

Tight bolting in cramped plant areas where air lines and electrical extensions cannot be utilized

Preventive maintenance for flange integrity on high-pressure pipelines

Torque‑angle tightening when digital traceability is paramount

OEM assembly lines for repeatability, safety speed


After-Sales Support & Rental Services (KSA)


At ABS Group Arabia, we don't just sell tools - we support your operation from start to finish.

🔧 Rental Service: Getting out a digital B-RAD calibrated fully for project or emergency work.

🔍 Service & Calibration: In-country calibration service by SASO and ISO torque standards.

👷 On-Site Training & Commissioning: We will ensure your team is competent and compliant.

🚚 Delivery pick-up anywhere in KSA: Units can be delivered to a location in Riyadh, Dammam, Jubail, Yanbu, and Jeddah.

🛠 Warranty & Spares Support: Genuine parts and factory-authorized service by our licensed engineers.



📩 Email: Mrashid@absgroup-arabia.com

📞 Call/WhatsApp: (+966) 509775727



Enquire Now



People Also Ask

- Portability- Battery-powered torque wrenches are cordless, allowing use in remote or difficult-to-access areas without a power source. Consistent Power Output- They maintain torque settings accurately throughout usage, reducing the risk of under- or over-tightening. Adjustable Torque Settings- Many models have variable settings, which makes them versatile across different applications. Efficient Operation- Battery torque wrenches provide rapid operation, saving time compared to manual alternatives. Ergonomic- Designed to be lighter and easier to handle, reducing operator fatigue and improving productivity.

- A torque gun, or torque wrench, is a power tool that applies a specific torque to a fastener, such as a nut or bolt. It operates by setting a torque level, after which it applies force to reach the exact torque specified. In pneumatic or electric torque guns, an internal mechanism (often gear-driven) drives the fastener until the preset torque limit is achieved. This limit can either cause the tool to stop automatically or alert the user. Some advanced torque guns have feedback mechanisms that track and log torque application data, ensuring accuracy.

- Cost- Precision torque wrenches, especially digital or hydraulic ones, can be expensive. Maintenance Needs- To maintain accuracy, torque wrenches require periodic calibration, which adds cost and upkeep time. Sensitivity to Incorrect Usage- Over-tightening or incorrect handling can damage both the tool and fasteners, and lead to calibration issues. Dependency on Battery/Power- Battery-powered torque wrenches may run out of charge during use, requiring recharging or battery replacement. Environmental Limitations- Torque wrenches might perform less accurately under extreme temperatures or adverse conditions.

-A torque tool (like a wrench or gun) works by applying rotational force to achieve a specific torque setting, usually measured in foot-pounds or Newton-meters. In manual torque tools, the user applies force until they reach the desired setting. In electronic or pneumatic models, the tool self-regulates by setting a specific torque limit that automatically stops or signals once achieved. This mechanism allows the tool to tighten or loosen fasteners to precise specifications, which is essential in applications where exact torque is crucial, such as in construction or automotive industries.

Advanced Bolting Solutions (ABS) has led the bolting industry with precision and innovation. Specializing in torquing (up to 72,000 Nm), tensioning (nut sizes up to 6 inches), flange management, and automation, we deliver tailored solutions for every project. Our ECITB-trained experts offer on-site machining, rentals, and globally recognized training through the ABS Training Academy.
